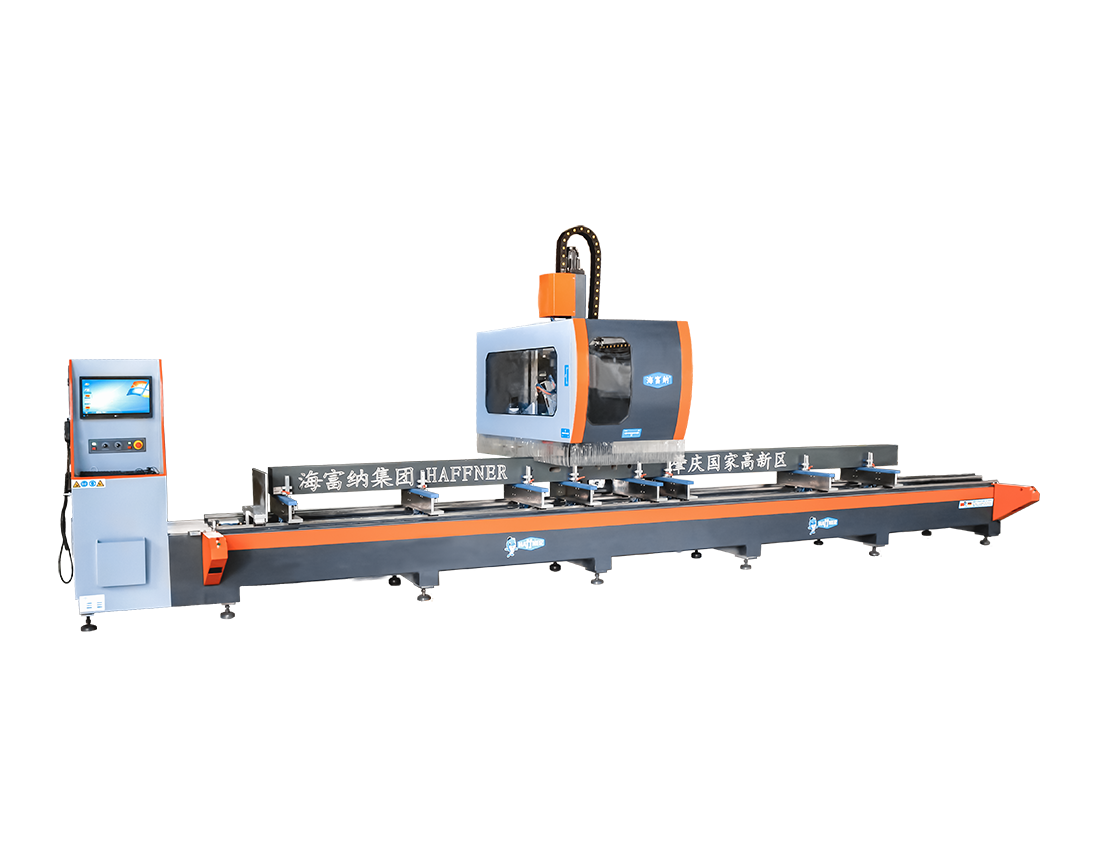

Heavy-duty Intelligent 4 Axis CNC Machining Center

Heavy-duty Intelligent 4 Axis CNC Machining Center

HT-475

Heavy-duty Intelligent 4 Axis CNC Machining Center
${ele.title}
${ele.title}

HT-475

Heavy-duty Intelligent 4 Axis CNC Machining Center

Apply mature technology, the main components are with all imported brands. The CAM high-quality processing software is in application. Suitable for drilling, milling, engraving, chamfering and other processing of various aluminum profiles, especially in the fields of large-scale aluminium doors, windows, curtain walls, industrial profiles, aerospace, rail transit, automotive lightweight, smart home, 5G base stations to process. Equipped with 8 station rotating tool magazine with fast tool change in easy operation to ensure high quality and high processing precision. And the A axis can be processed at any angle at ±90°. 3 surface machining can be completed in one clamping with 9kw high-power spindle in servo control system.
Honor
Contact Back
Product details

Main motor power：9kw
A axis range：±90°
Rotation rate of main range：0-24000 r.p.m
X axis range：7500mm
Y axis range：800mm
Z axis range：500mm
X axis speed：90m/min
Y axis speed：50m/min
Z axis speed：30m/min

Previous
Intelligent 4 Axis Gantry CNC Machining Center
Next
High-speed Intelligent 3 Axis CNC Machining Center
1/1
Number of views:
285

Heavy-duty Intelligent 4 Axis CNC Machining Center

Apply mature technology, the main components are with all imported brands. The CAM high-quality processing software is in application. Suitable for drilling, milling, engraving, chamfering and other processing of various aluminum profiles, especially in the fields of large-scale aluminium doors, windows, curtain walls, industrial profiles, aerospace, rail transit, automotive lightweight, smart home, 5G base stations to process. Equipped with 8 station rotating tool magazine with fast tool change in easy operation to ensure high quality and high processing precision. And the A axis can be processed at any angle at ±90°. 3 surface machining can be completed in one clamping with 9kw high-power spindle in servo control system.
Number of views:
285
Product serial number
HT-475
Category
CNC Machining Center Series
Quantity
-
+
1
DESCRIPTION
Video

Main motor power：9kw
A axis range：±90°
Rotation rate of main range：0-24000 r.p.m
X axis range：7500mm
Y axis range：800mm
Z axis range：500mm
X axis speed：90m/min
Y axis speed：50m/min
Z axis speed：30m/min

We could not find any corresponding parameters, please add them to the properties table
