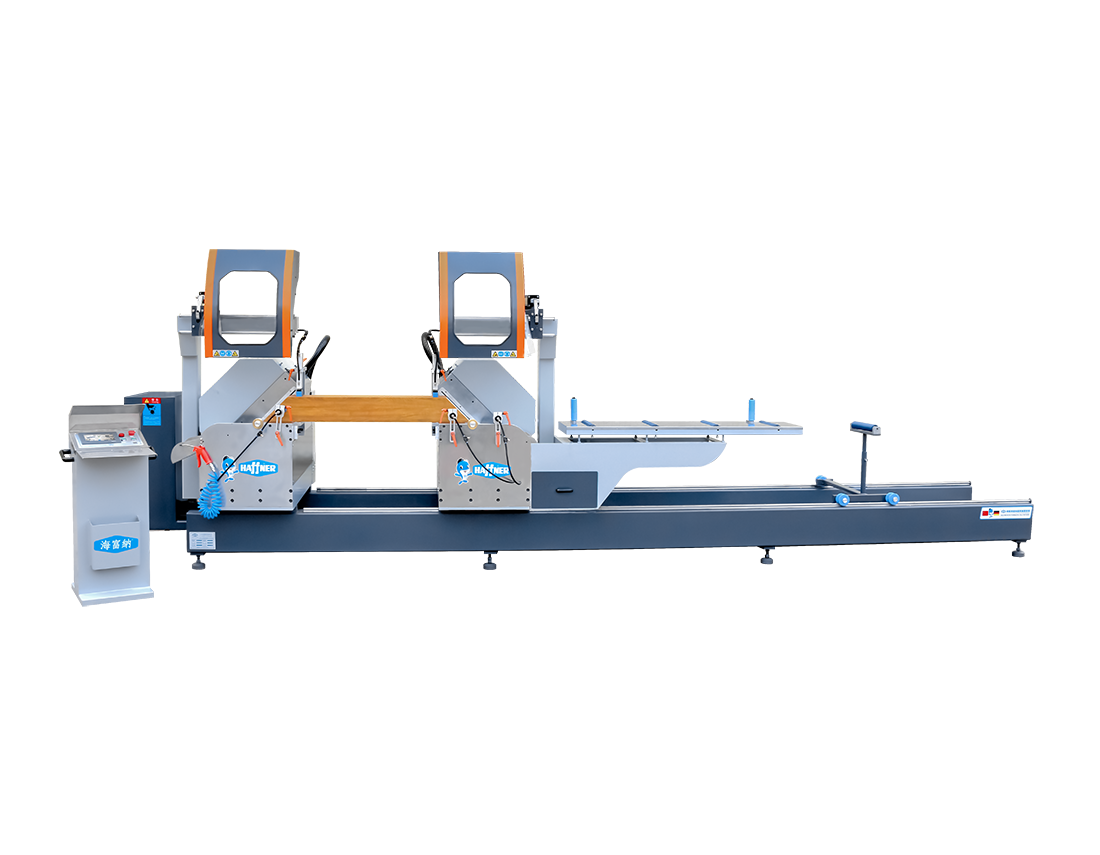

High Precision CNC Double Miter Saw For 45 And 90 Degree Process

High Precision CNC Double Miter Saw For 45 And 90 Degree Process

HT-615

High Precision CNC Double Miter Saw For 45 And 90 Degree Process
${ele.title}
${ele.title}

HT-615

High Precision CNC Double Miter Saw For 45 And 90 Degree Process

Adopt mature technology and the main components are all imported brands. Follow the safe and efficient cutting method of from "back to front" for customized demands. Controlled by a servo motor, the machine freely swing at 45°/90°, which could cut at the same time or cut separately. The operation is stable and the quality surface is fully guaranteed. The feed system adopts imported linear guide. Available for cutting on aluminum doors, windows, curtain walls, smart homes, lightweight cars, rail transit, and building decoration materials in high precision.
Honor
Contact Back
Product details

Motor power：2 x 3.0 kw
Saw blade diameter：Ф500/600x30xT120/T144
Pivoting angle：45°/ 90°
Cutting accuracy：±0.1mm/m
Angle accuracy：140mm/180mm(ф500/600)
Cutting width：135mm/255mm(ф500/600)
Cutting height：400mm/500mm(Ф500/600)
Min. cutting length：400mm/500mm(Ф500/600)
Max. cutting length：4500mm

Previous
3 Axis CNC Double Miter Saw For Compound Angles
Next
Intelligent CNC Professional 45 Degree Double Miter Saw
1/1
Number of views:
325

High Precision CNC Double Miter Saw For 45 And 90 Degree Process

Adopt mature technology and the main components are all imported brands. Follow the safe and efficient cutting method of from "back to front" for customized demands. Controlled by a servo motor, the machine freely swing at 45°/90°, which could cut at the same time or cut separately. The operation is stable and the quality surface is fully guaranteed. The feed system adopts imported linear guide. Available for cutting on aluminum doors, windows, curtain walls, smart homes, lightweight cars, rail transit, and building decoration materials in high precision.
Number of views:
325
Product serial number
HT-615
Category
Double Miter Saw Series
Quantity
-
+
1
DESCRIPTION
Video

Motor power：2 x 3.0 kw
Saw blade diameter：Ф500/600x30xT120/T144
Pivoting angle：45°/ 90°
Cutting accuracy：±0.1mm/m
Angle accuracy：140mm/180mm(ф500/600)
Cutting width：135mm/255mm(ф500/600)
Cutting height：400mm/500mm(Ф500/600)
Min. cutting length：400mm/500mm(Ф500/600)
Max. cutting length：4500mm

We could not find any corresponding parameters, please add them to the properties table
