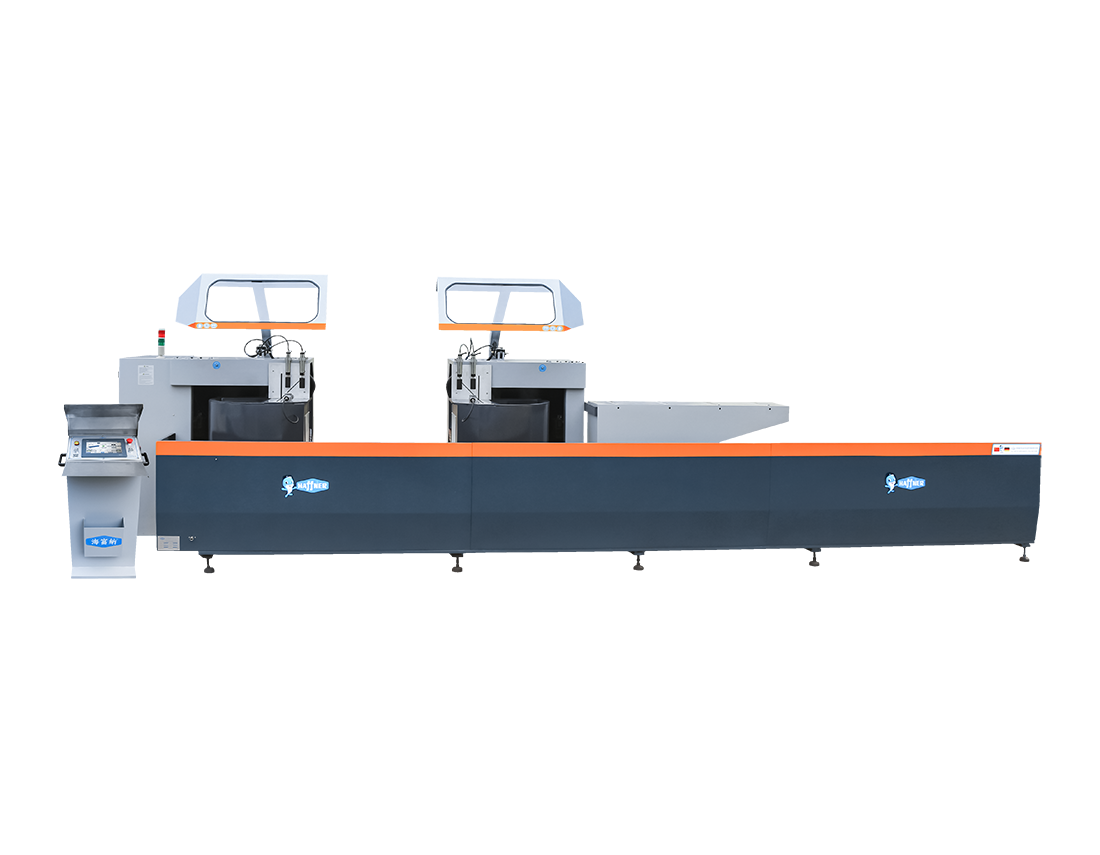

Super 7 Axis CNC Compound Multi-angle Double Miter Saw (Updated Version)

Super 7 Axis CNC Compound Multi-angle Double Miter Saw (Updated Version)

HT-618E

Super 7 Axis CNC Compound Multi-angle Double Miter Saw (Updated Version)
${ele.title}
${ele.title}

HT-618E

Super 7 Axis CNC Compound Multi-angle Double Miter Saw (Updated Version)

Adopt mature technology, and the main components are all imported brands. With safe and efficient cutting method of "bottom-up", 5 axis servo control + 2 axis frequency conversion to ensure cutting accuracy and perform compound angle cutting according to different demands of customers. Suitable for aluminum profiles process for building curtain walls, large decorative aluminum products, sunshine rooms, lightweight automobiles, and rail transit in high precision.
Honor
Contact Back
Product details

Motor power：2 x 3.0 kw
Saw blade diameter：Ф600x30xT144
Pivoting angle：25° ~90° ~135°
Cutting accuracy：45° - 90°
Angle accuracy：±0.1mm/m
Cutting width：390mm
Cutting height：180mm
Min. cutting length：750mm
Max. cutting length：6000mm
